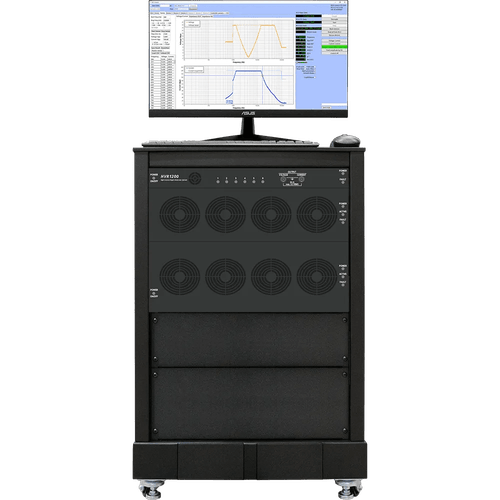

- Max. Ripple Current: 100Ap – 600Ap
- Max. Ripple Voltage: 0 – 150Vp / 300Vp-p
- Frequency Range: 150 Hz – 300 kHz
- Supported DC Voltages: 0 – 1200V, or 2000V in bridged configuration
- Data Gathered: Tracks and reports Voltage, Current, and Impedance
- Rugged: Protected against all kinds of DUT failure (including failure to a short when DUT under full load)
- Compatibility: Most HV Standard DC power supplies

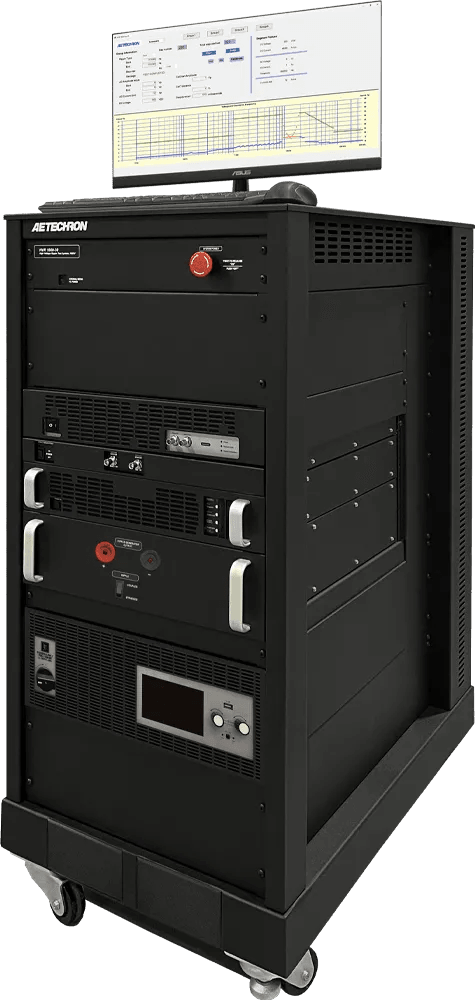

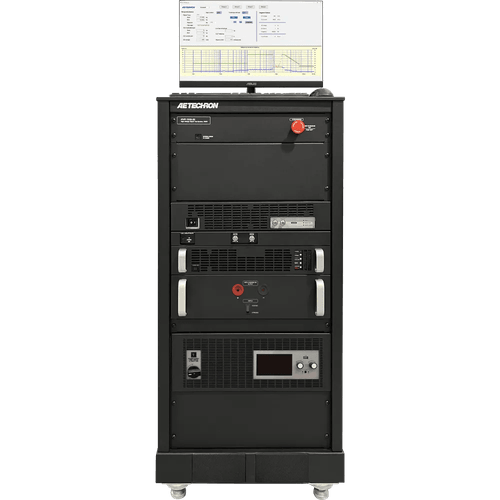

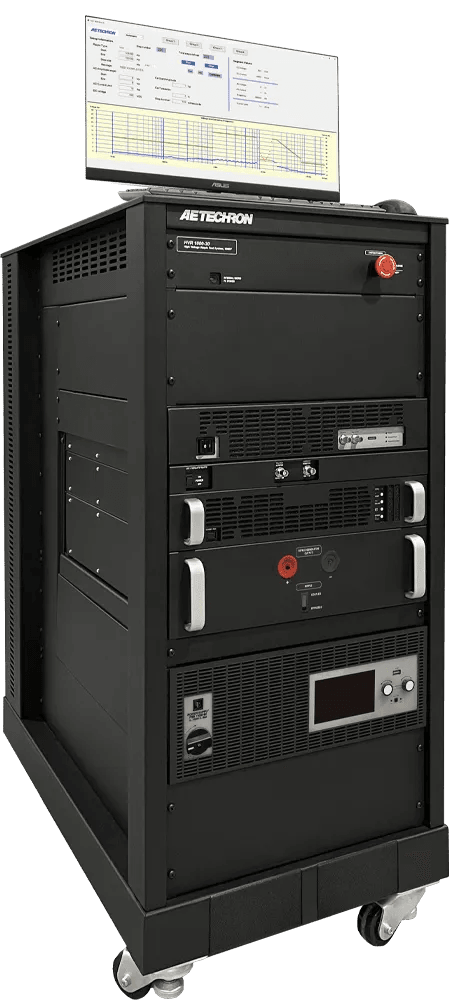

AC RIPPLE:

- Frequency range: 10 Hz to 200 kHz
- Voltage/Current: Up to 50 Vp, 60 Ap
(Higher current options available)
- Adjustable ripple current limit

DC:

- Output voltage: Up to 1000V
- Power/Current: Up to 60 kW, 160A DC
(Higher voltage options available)
- Adjustable DC current limit
- Bi-directional DC capability

- Slew rates up to 60 V/µsec.
- Up to 240A DC at +50VDC or –50VDC (4301-240 configuration).
- Can provide pulses of up to 800 amps at voltages of up to ±100V (4301-240 configuration).
- Adjustable compensation allows the system to maintain a 50V/2 µsec rise-time over a wide range of current outputs.

- 4-Quadrant – Can source and sink current
- ±400V – DC supply for 12V to 48V systems and 115V – 240V AC systems
- 50 kHz Sine – DC ripple tests for many standards
- 3mΩ DC Source Impedance – Out-performs ISO 7637-2 requirements
- Supports ground reference and supply offset testing required for ISO 16750-2 Sect. 4.8 and other similar standards

The DSR 100-25 test system, which is included with the CIS-25 Test Kit, has power in reserve. Each of our DSR Series models provides continuous DC power as rated, and is able to provide 4X rated power for in-rush testing up to 200 ms (such as is required in DO 160 Section 16). Plus, the DSR 100-25 system includes the complete 3110A Standard’s Library, so the CIS-25 Test Kit can be used for many other tests.

The equipment is easy to set up and use; all elements in the kit are robust and will provide you with many years of trouble-free service.

- 4-Quadrant – Can source and sink current
- ±80V – DC supply for 12V to 48V systems; meets 80V surge requirements
- 300 kHz Sine – DC ripple tests for all major standards
- 3µs Rise Time – Exceeds surge and dropout slew rate requirements
- 3mΩ DC Source Impedance – Out-performs ISO 7637-2 requirements
- Noise Floor: 20 mV

- 30A continuous at 28V DC
- 200A in-rush current capability
- 150 kHz small signal bandwidth
- ±180V DC capable
- >35 V/µs slew rate
- Four-quadrant operation (source and sink)

- Bandwidth: DC to 250 kHz
- Minimum Drop/Rise Time: 7µs
- Slew Rate: Up to 150 V/µs
- Max Voltage: 0 to 200 Vp
- Max Current: Up to 50 Ap per Channel
- Distortion: <0.1% at 1 kHz below clip
- Max Long-Term Power: 5 kW
- Multi-Channel Options: Available in 2- or 3-channel versions
- Power Supply: Universal Voltage, (100VAC to 250VAC) Single Phase, Power - Factor Typically 95% or greater

- Bandwidth: DC to 250 kHz
- Minimum Drop/Rise Time: 7µs
- Slew Rate: Up to 150 V/µs
- Max Voltage: 0 to 200 Vp
- Max Current: Up to 50 to 150 Ap
- Distortion: <0.1% at 1 kHz below clip
- Max Long-Term Power: 5 kW*
- Typical Output Ripple: 0.6V RMS
*9105 output is 4.5 kW from 230V or 240V sources; output for all other models is 5 kW.

- Bandwidth: DC to 250 kHz
- Voltage: 0 to 250 VRMS; 0 to 350 VDC
- Slew rate: Up to 300 V/µs
- Current: Up to 60 to 360 ARMS*
- Distortion: <0.8%
- Power: 4 kW to 24 kW*
- Power levels up to 4X rated power when driving reactive loads
- High power efficiency and density
*Models available with output power from 4 kW to 24 kW (capable of up to 96 kVA).

- Bandwidth: DC to 50 kHz
- Voltage: 0 to 250 VRMS; 0 to 350 VDC
- Slew rate: Up to 80 V/µs
- Current: Up to 80 to 480 ARMS*
- Distortion: <0.2%
- Power: 4 kW to 24 kW*
- Power levels up to 5X rated power when driving reactive loads
- High power efficiency and density
*Models available with output power from 4 kW to 24 kW (capable of up to 120 kVA).

Bandwidth: DC to 50 kHz
Voltage: 0 to 140 VRMS; 0 to 200 VDC
Slew rate: Up to 60 V/µs
- Current: Up to 65 to 300 ARMS*
- Distortion: <0.2%
- Power: 2 kW to 10 kW*
- Power levels up to 5X rated power when driving reactive loads
- High power efficiency and density
*Models available with output power from 2 kW to 10 kW (capable of up to 50 kVA).

- Output Power: Up to 20 kVA continuous, 40 kVA short-term
- Current: Up to 400A continuous, 800A short-term
- Voltage: Up to ±500 Vp
- Bandwidth: DC to 60 kHz, ±3 dB
- Slew Rate: 40V/µs
- THD: Less than 0.25% (DC to 20 kHz)
- DC Drift: Less than ±400 µV (from room temperature to thermal shutdown)

- Up to 85A continuous at 13.5V DC; 70A at 28V DC
- Up to 200A in-rush current capability
- Stable when driving highly capacitive loads
- ±80V DC capable
- >35 V/µs slew rate
- Four-quadrant operation (source and sink)
- 208 VAC version ONLY; 400 VAC version not available

- 30A continuous at 28V DC
- 200A in-rush current capability
- 150 kHz small signal bandwidth
- ±180V DC capable
- >35 V/µs slew rate
- Four-quadrant operation (source and sink

- 60A continuous at 13.8V DC
- 200A in-rush current capability
- 150 kHz small signal bandwidth
- ±95V DC capable
- >35 V/µs slew rate
- Four-quadrant operation (source and sink)

- Over 12,000 watts peak for 40 ms and 5,500 watts peak continuous into a 1Ω load
- 40 ms pulses of up to 105 Ap into a 1Ω load
- Frequency bandwidth of DC-50 kHz at rated power; DC-100 kHz at reduced power
- Continuous system output of 800 Vp or 170 Ap maximum are possible with multiple, interconnected amplifiers

- Drop outs and surges as fast a 2µs
- Small signal response up to 1 MHz
- 13.5 VDC at up to 30A
- Field-selectable ±40V, 75V or 150V potential

- Up to 900 watts RMS power output
- Provides rated long-term power at frequencies up to 40 kHz
- Small signal response up to 1 MHz
- Up to 16A at 13.5 VDC
- Can be used to create series or parallel systems for up to 3x the voltage or 4x the current output
