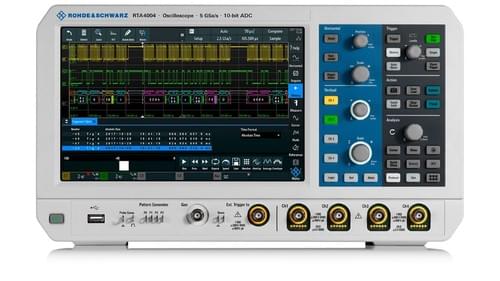

- Bandwidth: 200 MHz to 1 GHz
- 10-bit ADC
- Memory depth: up to 1 Gsample
- 500 µV/div sensitivity with full bandwidth and low noise
- 1000 Msample total standard memory, optimal for serial protocol analysis
- Display: 10.1’’ capacitive touchscreen

- 4x the resolution, ½ the noise floor in a portable oscilloscope
- Increase vertical resolution by four times with a 14-bit analog-to-digital converter (ADC).
- See smaller signals with a 50 µVRMS noise floor.
- Identify infrequent signal glitches with an uncompromised 1.3M waveform / second update rate enabled by a custom ASIC.
- Capture and analyze more signals at once with 100 Mpts of deep memory.
- Display up to four independent signals and control the scaling individually.

- Bandwidth: Up to 1GHz
- Large 10.1" capacitive touchscreen
- 10-bit ADC at all sensitivity levels and with very little noise
- 40 Msample (all channels) and 80 Msample (interleaved)
acquisition memory depth
- 10 s boot time

1 GHz

4 analog plus 16 digital channels

Easily view and analyze your signals on the large 8.5-inch capacitive touch screen

Isolate signals in seconds with exclusive Zone touch triggering

See more signal detail with the 1,000,000 wfms/s update rate

Capture more data with up to 4 Mpts memory

Expand your measurement capabilities with full upgradability: add bandwidth and advanced application software at any time

InfiniiVision 6000 X-Series Digital Storage Oscilloscope, 1 GHz, upgradeable to 6 GHz, 20 GS/s, 4 Channel

1.5 GHz

4 analog channels

Easily view signals on the large 12.1-inch capacitive touch screen

Isolate signals in seconds with exclusive Zone touch triggering

Capture more data with 4 Mpts memory and standard segmented memory

See more signal detail with 1,000,000 wfms/s update rate

Expand your measurement capabilities with full upgradability: add digital channels, dual-channel 20 MHz
arbitrary waveform generator, 3-digit DVM, serial trigger and analysis, and mask testing at any time
