Available Models:

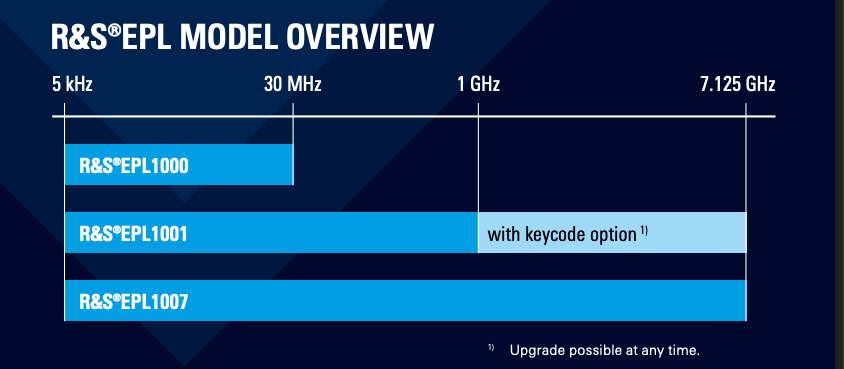

• R&S®EPL1000
• R&S®EPL1001
• R&S®EPL1007

FOR ALL USE CASES UP TO CISPR 16-1-1 COMPLIANCE

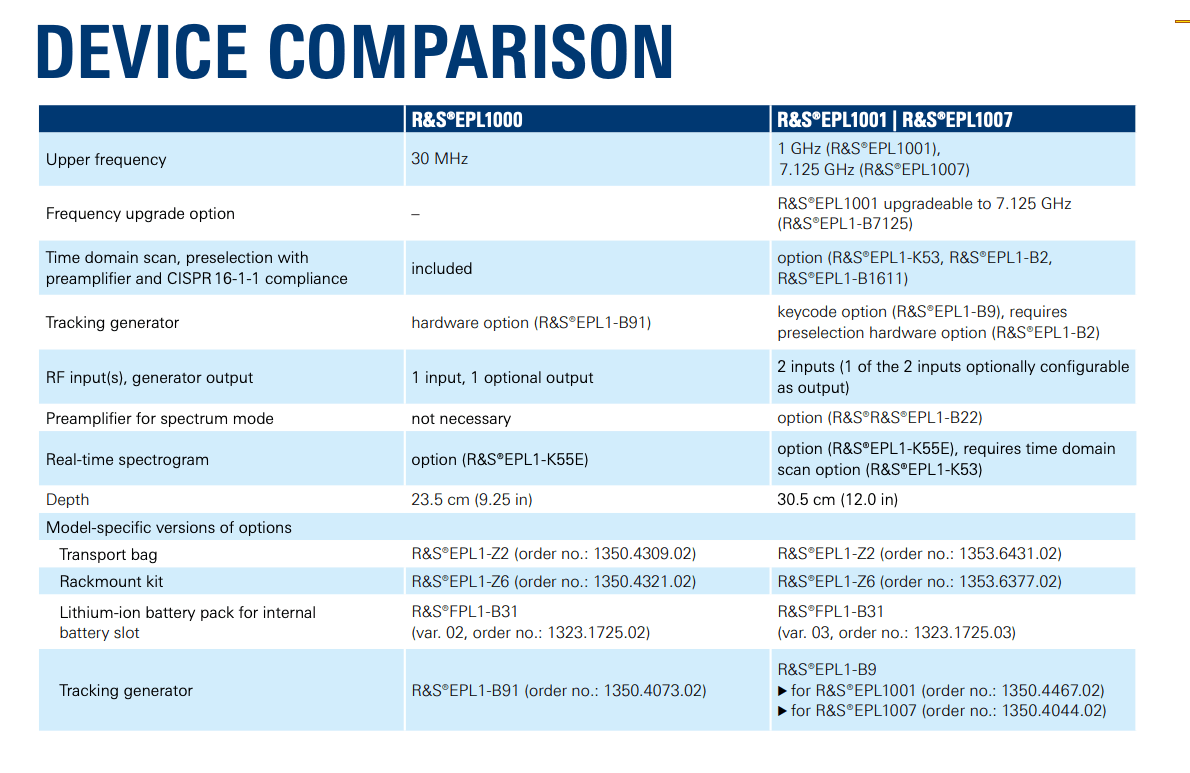

The R&S®EPL provides strong features and options to precisely measure emissions even if the measured signals are challenging. Input signal filtering by preselection, preamplifier and CISPR16-1-1 compliance comes with the R&S®EPL1000 base unit, and for the R&S®EPL1001 and R&S®EPL1007 they are optional. This means that the R&S®EPL can be used both during the development phase and for certification.

CONVENIENT MEASUREMENTS

The R&S®EPL comes with many features that make it easy for the user to perform and document EMI measurements. Features include:

▶ Automatic measurement of multiple frequency segments with individual settings (scan table) for resolution bandwidth (RBW), measurement time, attenuation and preamplifier use

▶ Remote control of connected Rohde&Schwarz line impedance stabilization networks (LISN) via R&S®EZ-21 control cable — Selection of the line to measure via the R&S®EPL GUI

▶ Preview and final measurement — Alternative time saving procedure when time domain scan is not used with the final detector — Completely automated sequence of preview measurement, peak search and final measurement

▶ Limit line display and checking to easily evaluate measurement results — Easy definition of limit lines — Library with about 170 EMI limit lines based on the latest versions of common EMI standards (CISPR/EN, FCC, MIL-STD-461 and DO-160) for fast and accurate configuration of measurements

▶ Report generation to easily record, document and exchange results — User-defined layout and content definition through templates — On-screen report display and saving (pdf and docx file formats) — Layout definition and preview of test reports

▶ Transducer factors to include characteristics of additional components used (e.g. cable attenuation, LISN or antenna factors) — Simple definition and quick import — Library covering most of the Rohde&Schwarz EMI accessories — Record of new transducer factors with integrated tracking generator function (part of R&S®EPL1‑B91/ R&S®EPL1-B9 internal generator option) — Simultaneous activation of one or more transducers

FAST MEASUREMENTS THANKS TO TIME DOMAIN SCAN

The R&S®EPL supports conventional level determination measuring one frequency at a time (stepped scan). CISPR16-1-1 compliant time domain scan (TDS) increases measurement speed significantly. TDS comes standard with the R&S®EPL1000 and optionally with the R&S®EPL1001/R&S®EPL1007 (R&S®EPL1-K53).
