- Real-time spectrum analysis, ideal for testing fast-changing signals
- >750,000 UI/s eye diagrams at 10 bits
- 6 GHz on 8 channels
- 16 GSa/s on 8 channels
- 200 Mpts per channel memory, standard
- Full upgradeability, no exceptions

- frequency range of 10 MHz to 6 GHz

- extended frequency of 3 MHz to 6 GHz with option H3

- wide dynamic range of -60 to +25 dBm sensor option dependant

- internal zeroing capability to eliminate external calibration

- high measurement speed of up to 250 readings/second

- support internal / external trigger measurements, internal triggering, and trace display

- display power measurements on a PC or other Keysight instruments

Frequency range of 10 MHz to 6 GHz

USB connectivity with wide dynamic range of -70 to +26 dBm for small signal measurements

Fast real time measurement of 50,000 readings/sec

Real-time measurement with zero dead time to ensure every single continuous pulse is measured

Average mode time-selectivity function allows full dynamic range for average and time selectivity average power measurements

Internal zero and automatic calibration saves time and reduces measurement uncertainty

SP10T configuration, magnetic latching, terminated ports

opto-electronic indicator and current interrupts

superior isolation and voltage standing wave ratio (VSWR)

TTL/5V CMOS compatible (optional)

Keysight 26.5 GHz, SP10T multiport electromechanical switches provide superior RF performance with higher port count for multi-port or multi-DUT testing signal routing applications.

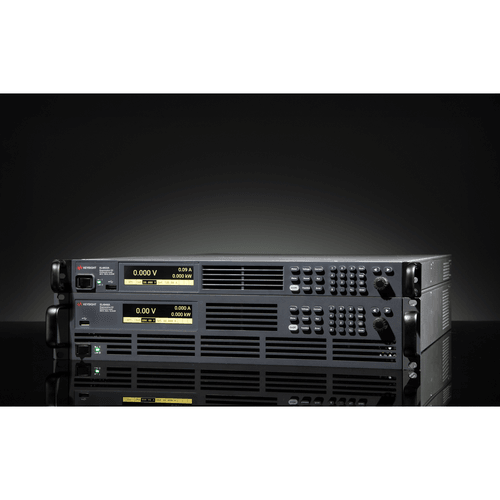

DC output ratings
Voltage: 0 to 1500 V
Current: 0 to 30 A
Power: 15000 W

AC input
Voltage range: 360 - 440 VAC

Programming accuracy
Voltage: 0.1% of full-scale
Current: 0.2% of full-scale

Extend the number of test ports for multi-DUT or multiport devices measurement

Achieve lower cost-per-port and increase throughput without compromising performance

Allows switching of multiple signals without physically changing the connections.

Minimizes crosstalk between channels with excellent isolation and low VSWR ensuring signal integrity

The Keysight U1816F is a DC to 67 GHz switch matrix that consists of two single-pole-six-throw (SP6T) switches driven with USB connection. It allows switching of multiple signal paths without physically changing the connections. This enables you to perform multiple tests with the same setup, eliminating frequent connects and disconnects. Automate the entire testing process to increase throughput in high-volume production environments.

Ammeter accuracy: Up to 0.025% + 8 nA; up to 18 bits

Arbitrary waveform generator function: Bandwidth up to 100 kHz, output power up to 500 W

Data logger function: Measurement interval from 20 µs to 60 seconds, with a maximum of 500 M readings per second

Scope function: Digitizes voltage and current up to 200 kHz, 512 kpts; up to 18 bits

Voltmeter accuracy: Up to 0.025% + 50 µV; up to 18 bits

DC to 50 GHz operating frequency range

-35 to +20 dBm power measurement range

RF to DC thermoelectric substitution measurement method

Less than 0.2 reflection coefficient magnitude across the operating frequency range at 50 Ohm reference impedance

DC resistance range from 50 Ohm to 2k Ohm

As a new transfer standard with faster measurement speed, broader frequency range, and ease of maintenance

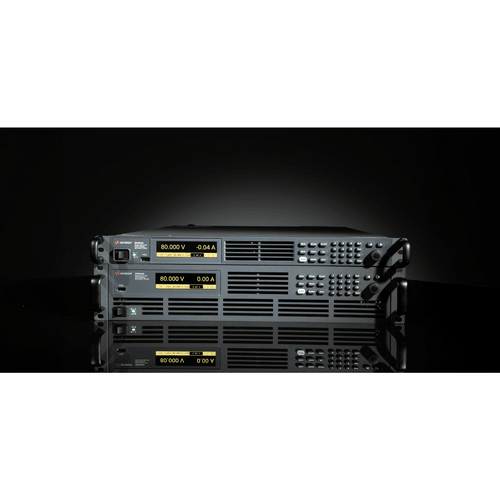

Output ratings: 950 V, ±20 A, 10 kW

Operate in two-quadrant mode as power source and regenerative electronic load

Emulate high-voltage, high-power battery with programmable resistance up to 50 Ω

Maximize throughput with fast output speed and sub-millisecond command-processing time

Create up to 200 kW power or loading through easy parallel connection

Reduce cost for cooling and electricity with eco-friendly, regenerative design

Save valuable rack space with compact 3U-high size

A part of Keysight's EV1003A HEV/EV Power Converter Test Solution

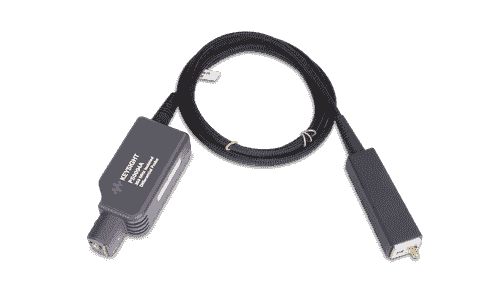

1 GHz of analog bandwidth (<4 pF input capacitance)

300 Vrms CAT II input voltage, and up to 1.5 kV peak transient overvoltage

10 MΩ input impedance at low frequencies

AutoProbe I compatibility

1.3 meter cable length for ease of use

Small 5mm tip and compact probe design for easy probing on smaller targets

Variable attenuation, automatically configured by the oscilloscope

Rigid tip for secure device-under-test connectivity

Replaceable probe tip cartridges

Large accessory set for versatile connectivity
