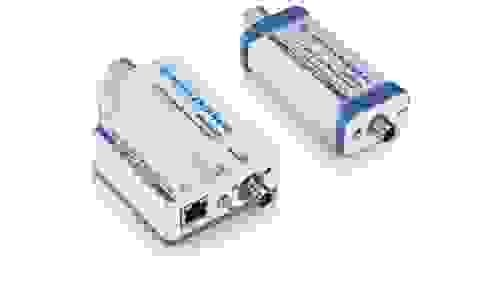

- Maximum dynamic range: –70 dBm to +45 dBm
- Frequency range: DC to 170 GHz
- More than 50000 readings/s
- Flexible operation with R&S®NRX base unit, laptop/PC and many Rohde & Schwarz instruments
- Control and monitoring via LAN and USB
- Easy LAN operation from a web browser
- R&S®NRPxxS(N) for widest dynamic range
- R&S®NRPxxT(N) for highest accuracy
- R&S®NRPxxA(N) for EMC applications

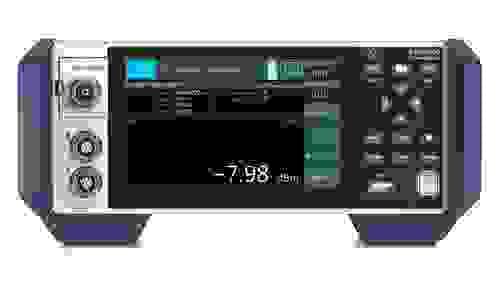

- Intuitive operation with touchscreen based GUI
- Supports up to four R&S®NRP and R&S®NRQ6 power sensors
- Supports all sensor-dependent measurement functions
- Optional high-precision CW and pulse mode reference source module
- Optional power reflection measurements with R&S®NRT-Zxx sensors

- Broad frequency range: from 100 kHz to 20 GHz
- Time domain and distance-to-fault options for deeper analysis of filters and cables

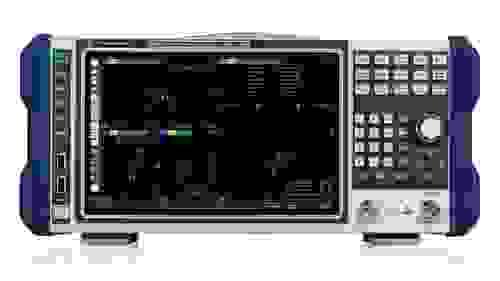

- Compact standalone vector network analyzer with fully integrated PC
- Fast measurement speeds
- Innovative user interface and wide 10.1" multi-touch display
- Windows 10 operating system
- Support of calibration units

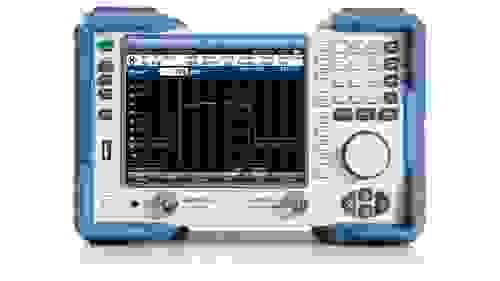

- Frequency range 9 kHz to 3 GHz or 6 GHz
- Resolution bandwidths 10 Hz to 3 MHz
- High sensitivity (< –141 dBm (1 Hz), with optional preamplifier < –161 dBm (1Hz))
- High third order intercept (> 10 dBm, typ. 15 dBm)
- Low measurement uncertainty (< 1 dB)
- Internal tracking generator (model .13/.16)

- Frequency range from 30 kHz to 4/8/18/26.5 GHz
- One-port cable and antenna measurement with basic instrument
- S-parameter (S11, S12, S21, S22) measurement with basic instrument
- 100 dB (typ.) dynamic range for filter and antenna isolation measurements
- Factory calibration over entire frequency range
- Built-in receiver step attenuator to increase port input power range linearity
- Built-in DC voltage supply (bias) for active components such as amplifiers

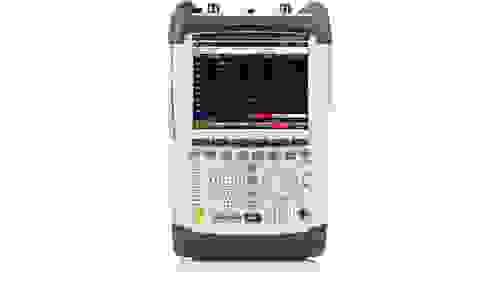

- Frequency range from 100 kHz to 3.6 GHz or 8 GHz
- 100 dB (typ.) dynamic range for filter and antenna isolation measurements
- Factory calibration over entire frequency range
- Built-in DC voltage supply (bias) for active components such as amplifiers
- Power meter option
- Saving of measurement results on SD memory card or USB memory stick

- Frequency range in cable and antenna analyzer mode from 2 MHz to 3 GHz or 4 GHz, upgrade via keycode
- Frequency range in spectrum analyzer mode from 5 kHz to 3 GHz or 4 GHz, upgrade via keycode
- One-port model features: DTF, return loss, VSWR and cable loss measurements
- Two-port model additionally features:
– Two-port transmission measurement
– Spectrum analysis
– Interference analysis
– Signal strength mapping
– Modulation analysis
– Advanced gated trigger measurements
– EMF measurement application

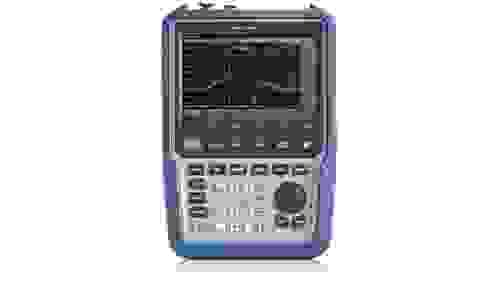

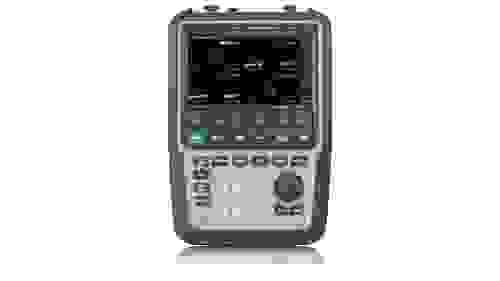

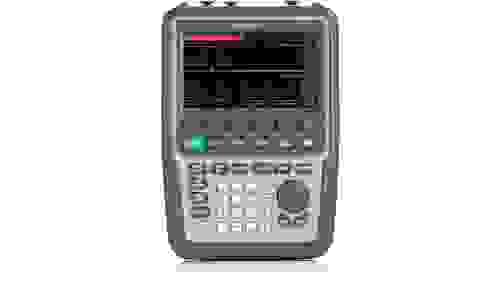

- Frequency range from 5 kHz up to 44 GHz
- Tracking generator with frequency range from 30 kHz to 44 GHz (models .23/.36/.54)
- Frequency extensions via keycode
— From 5 kHz down to 100 Hz (applicable to models .06/.13/.26/.23/.36/.44/.54, with R&S®FPH-B29 option installed)
— From 2 GHz to 3 GHz or 4 GHz (model .02)
— From 6 GHz to 8 GHz (model .06)
— From 13.6 GHz to 20 GHz (models .13/.23)
— From 26.5 GHz to 31 GHz (models .26/36)
- Spectrum analysis for e.g.
— Mobile communications
— Radar and satellite communications
— Broadcasting
- Solid RF performance
— DANL: typ. –163 dBm (10 MHz to 3 GHz, preamplifier on)
— TOI measurement: +10 dBm (f = 2.4 GHz)

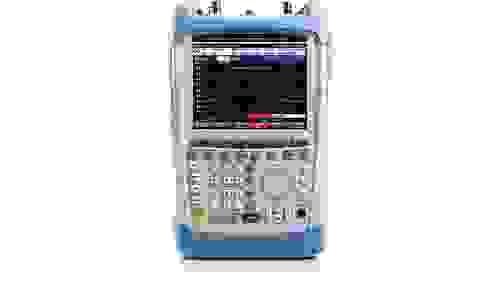

- Frequency range from 9 kHz to 3.6/8/13.6/20 GHz
- High sensitivity of < –141 dBm (1 Hz), with preamplifier < –161 dBm (1 Hz)
- 20 MHz demodulation bandwidth for analyzing LTE signals
- Low measurement uncertainty (< 1 dB)
- Internal tracking generator and VSWR bridge with built-in DC voltage supply (bias)
- Two-port network analyzer

- Multi-standard platform for broadcast, navigation, cellular and wireless applications

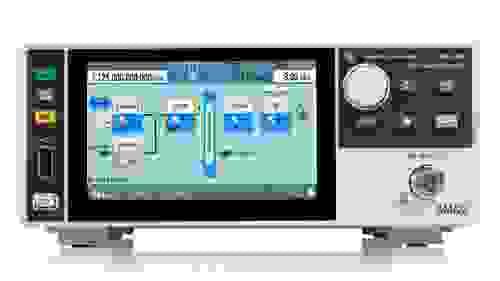

- Full software option defined vector signal generator with 5" touchscreen
- Modern RF signal generation concept from 4 kHz up to 7.125 GHz
- High output power up to +25 dBm
- Modulation bandwidth up to 240 MHz

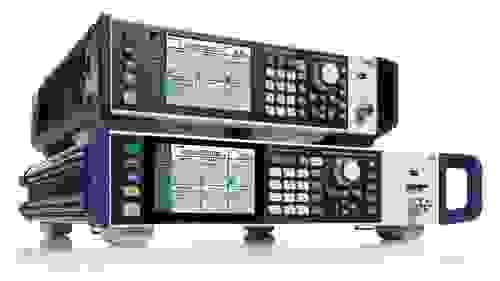

- Frequency range from 8 kHz to 1, 3, 6, 12.75, 20, 31.8 and 40 GHz
- Outstanding single sideband (SSB) phase noise of < –112 dBc (meas.) at 10 GHz and an offset of 20 kHz
- Very low wideband noise depending on the frequency range, sometimes well below < –145 dBc (meas.)
- Highest output power of 34 dBm at 1 GHz, 25 dBm at 20 GHz and 19 dBm at 40 GHz (all is measured)
- Compact form factor of 2 HU and 3/4 19" width for the R&S®SMB100B RF signal generator (1/3/6 GHz) and 19" width for the R&S®SMB100B microwave signal generator (12.75/20/31.8/40 GHz)

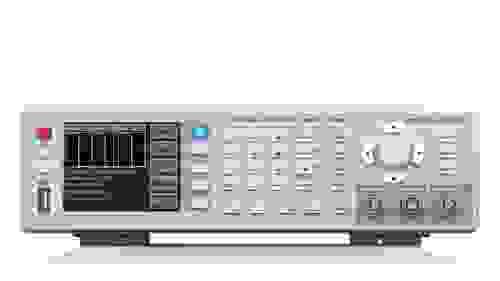

- Two models: the R&S®HMF2525 with 25 MHz and the Rohde & Schwarz HMF2550 with 50 MHz maximum frequency
- 14-bit resolution and 8 ns rise time
- As well as standard waveforms such as sine, rectangle and triangle, the instruments provide powerful arbitrary signal functionality. In addition to predefined signal shapes such as sin(x)/x, white or pink noise, they can also output customer-specific, arbitrary shapes with a signal length of up to 256 ksample
- The burst, sweep, gating, internal and external triggering operating modes and the AM, FM, PM, PWM and FSK modulation functions (in each case internal and external) can be applied to all signals

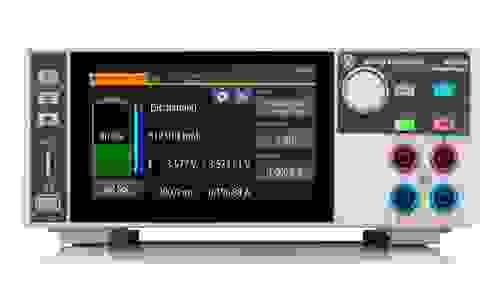

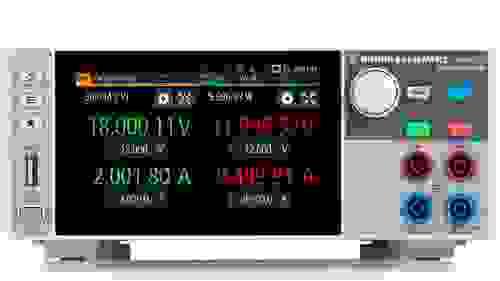

- Max. output power: 120 W
- Voltage per channel: 0 V to 20 V
- Max. current per channel: 6 A
- 500 ksample/s high-speed data logging

- Fast regulation of output voltage with minimum overshoot and very fast load recovery time
- Minimum residual ripple and noise to supply interference-free voltage to sensitive DUTs

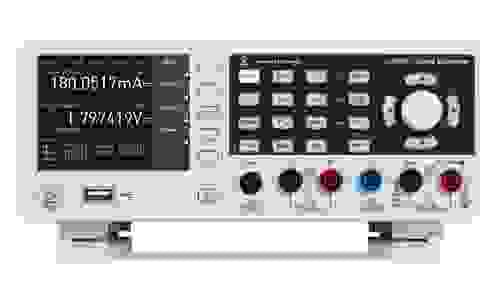

- Readings with up to 6½ digit resolution are perfect for characterizing devices that have low power consumption in standby mode and high current in full load operation
- Two quadrants: operates as source or sink

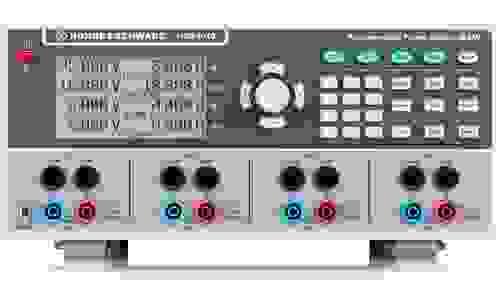

- Four models: 2 or 3 channels with 188 W total output power, 3 or 4 channels with 384 W total output power
- Galvanically isolated, floating outputs with overload and short circuit protection
- Remote sensing eliminates voltage drops on the load leads
- Comfortable programming features and 19" rack adapters ensure perfect integration into production environments

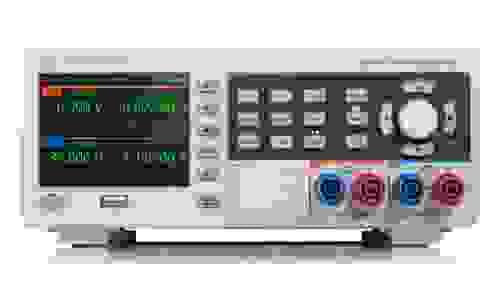

- Max. output power: 100 W
- Max. voltage per channel: 32 V
- Max. current per channel: 3 A, 5 A or 10 A
- Galvanically isolated, floating and short-circuit proof outputs
- Intuitive, price-transparent online product configurator

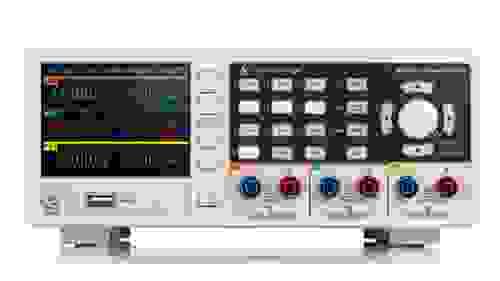

- Max. output power: 80 W
- Max. voltage per channel: 35 V or 100 V
- Max. current per channel: 2 A or 6 A
- Up to 200 V in serial or 12 A in parallel mode with channel fusion
- Intuitive, price-transparent online product configurator

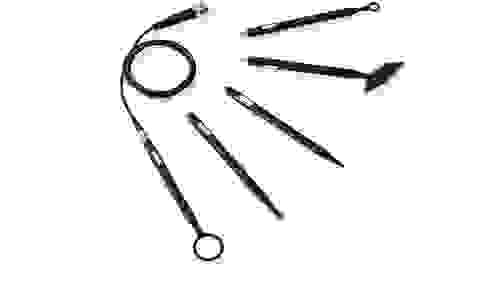

- Wide frequency range: 30 MHz to 3 GHz
- Probe tips adapted to near-field measurement
- Special, electrically shielded magnetic field probes
- Easy operation and handling
- High spatial resolution

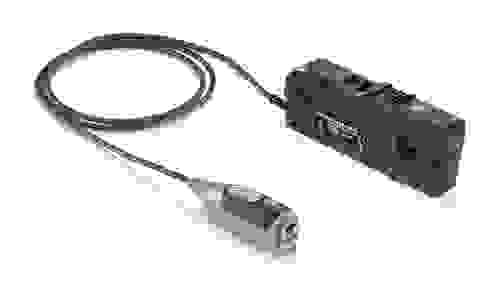

- Non-intrusive DC and AC measurements
- Current range from mA to 2000 A
- Up to 120 MHz bandwidth
- Robust design and easy operation

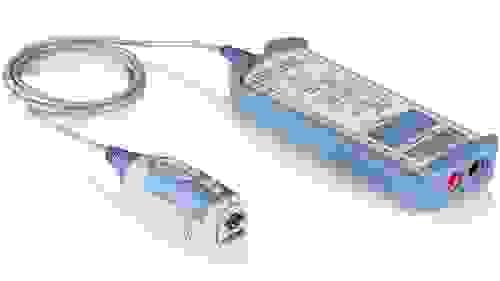

Maximum voltage: up to 6000 V
Bandwidth: up to 400 MHz
Integrated high precision DC voltmeter (not available for all models)
