- 100 kHz to 4, 6, 12, 20, 40 GHz
- Ultra-fast switching: <100 ns within mod BW, as fast as 2.6 µs (4 GHz), 3.1 µs (6 to 20 GHz), 5.9 µs (40 GHz)
- Low phase noise: -142 dBc/Hz at 1 GHz, 10 kHz offset; -113 dBc/Hz at 10 GHz, 10 kHz offset
- Harmonics: < -30 dBc; Non-harmonics: -50 dBc at 10 GHz
- Standard Digital vector modulator: IQ BW 400 MHz (16bit)
- Keysight Signal Studio and IQTools Waveform Creation Support
- Internal digital baseband generator: Sample Rate up to 500 MHz, 512 MSa IQ memory
- FCP for IQ-data streaming, 125/250 Msa/s
- Ext. analog I/Q inputs: 50 MHz

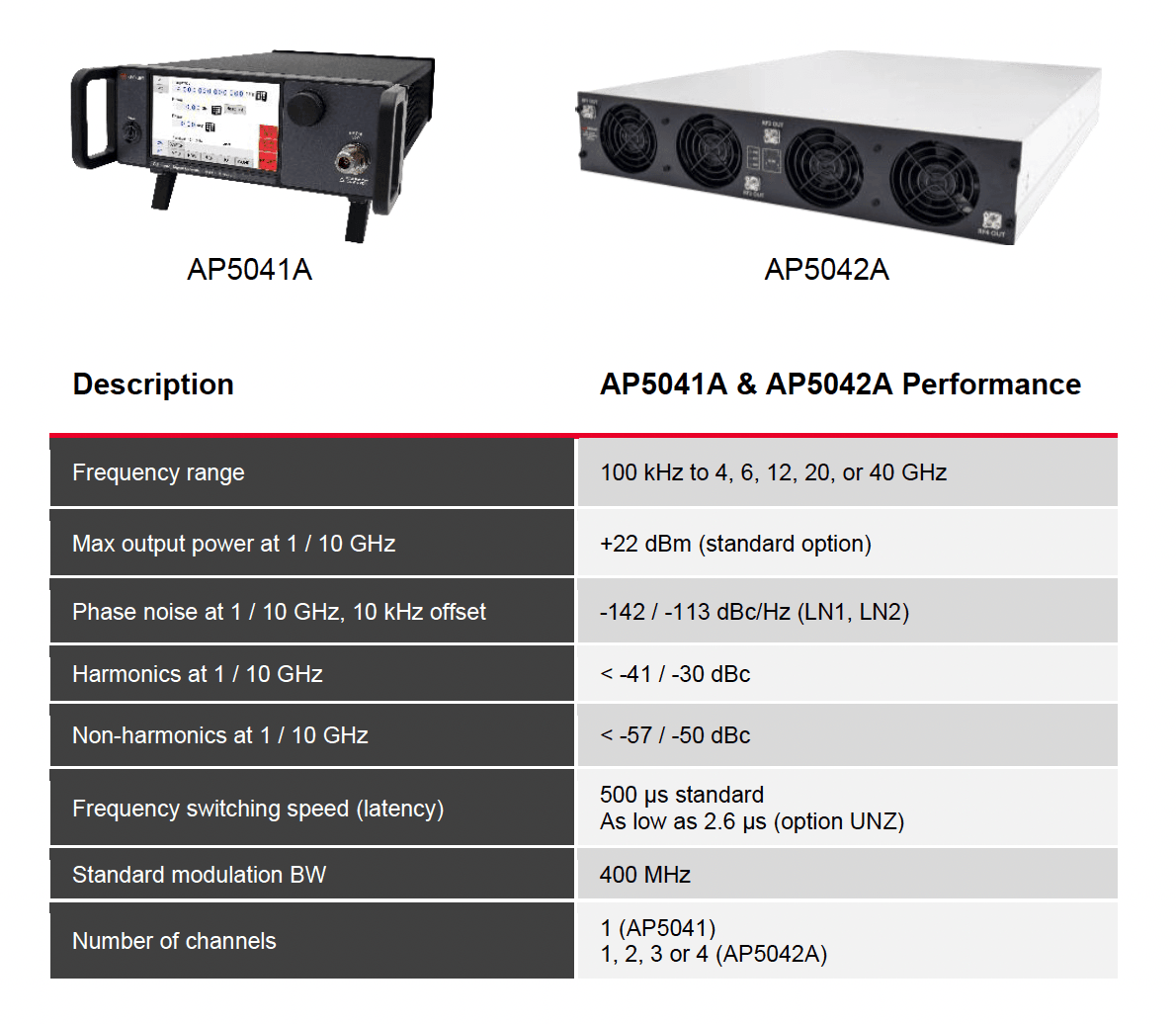

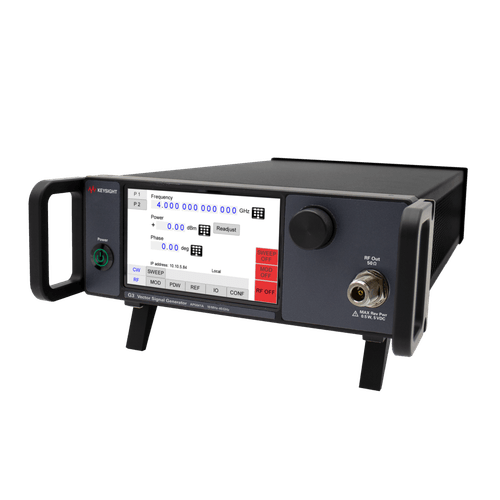

- Single-channel model AP5041A: ½ 19” width, 2U enclosure, AC wide range powered (90 W), 7.5 kg
- Multi-channel model AP5042A: Up to 4 independent channels in a 2U rack-mount chassis, < 350 W, 20 kg
- Phase coherent, phase coherent switching
- Multi-device waveform/trigger synchronization: 6 GHz clock IN/OUT
